Short Description:
The PG circuit breaker range, from 5 to 60 A,(1 Ph + N) or (3 Ph +
N), with or without earth leakage protection (300 mA – 500 mA or 650
mA), offers the right product to fit every type of installation
operating principles
■ service connections are the interface between the Utility and the end- user customer.
■ they connect the customer’s electrical installation to the power distribution network.
advantages
■ low-cost product, suitable for conventional service connections.
■ multiple rating device.
■ several levels of earth leakage sensitivity.
■ compiles with the French NFC 61 450 standard.
Application
PG JVM8 series adjustable residual current breaker is suitable for AC
50/60Hz,250/440V circuit,prevents from overloading,short-circuit etc.On
the occasion of shock hazard or earth leakage,it will trip
immediately.At the same time,the rated current of overload protection
can be adjustable.
Specification
PG Residual Current Circuit Breaker
1.High breaking capacity .
2.Modern, innovative breaker design
3.100%test before sending out.
4. Competitive price &professional service.
| Type | PG |
| Poles | 2P,4P |
| Rated Voltage (V) | 250V/440V |
| Rated Current (A) | 10,15,20,25,30,45,50,60A Adjustable |
| Leakage Motion Current (mA) | 300mA, 500mA |
| Leakage Dead Current (mA) | 150mA, 250mA |
| Standard | NFC61450,IEC61008 |
Application
JVM8(PG) RCCB, the rated current is adjustable from 5A up to 60A.
User can select suitable current for better protection against overload
and short circuit. The products comply with IEC61008
Specifications
Type | JVM8(PG) |
Poles | 2P | 4P |
Rated Voltage(V) | 230V/400V |
Rated current(A) | 5-15A(5、10、15)A 10-30A(10. 15、20、25、30)A 15~45A(15、30、45)A 30-60A(30、45、60)A 30~60A(30、40、50、60)A |
Leakage operating current(mA) | 300mA 500mA |
Leakage non-operating current(mA) | 150mA 250mA |
Accord with standards | NFC61450 |

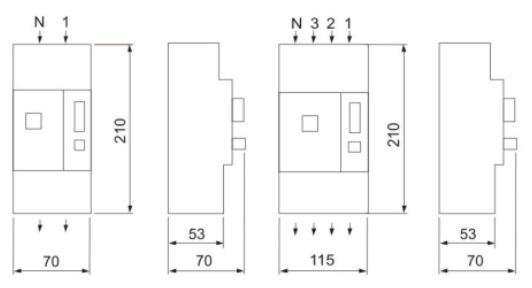

Dimensions
